Description

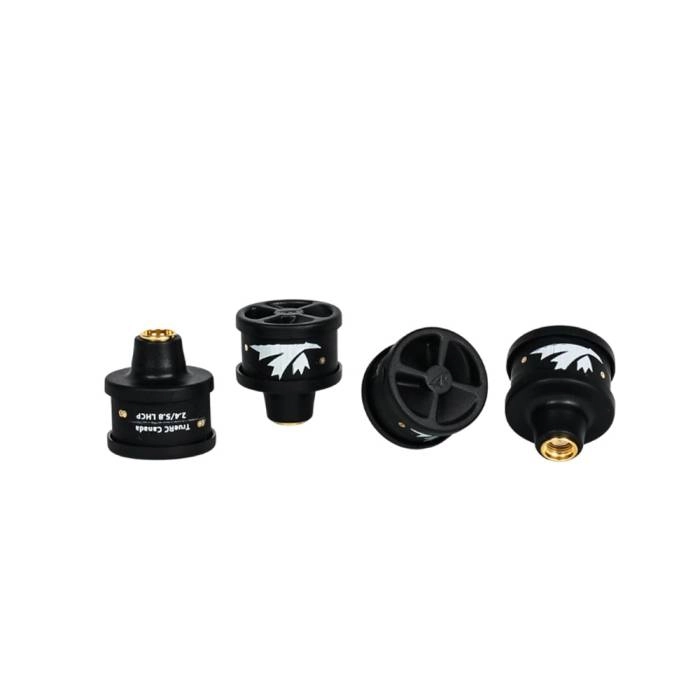

The TrueRC Duality Antenna is a dual-band CP omni antenna that covers both the 2.4GHz and 5.8GHz bands in a single compact stubby package. It features a drop-in fit for the DJI FPV Goggles V2, allowing you to leave them on at all times thanks to its much lower profile compared to the stock linear antennas. Each unit is hand-tuned on a professional analyzer, ensuring you get the most out of your digital HD system.
Features
DJI FPV Goggles V2 Compatibility
Replaces Stock Linear Antennas
Compact Stubby Design
Enhanced Performance
Circular Polarization
Dual-Band Coverage
Specifications
Bandwidth: 2.39 GHz – 2.52 GHz & 5.6 GHz – 6.1GHz
Dimensions: 23.3 mm (diameter) × 22.0 mm (height)
Gain: 1.7 dBic @ 2.4 GHz, 2.8 dBic @ 5.8GHz
Cross-Polar Rejection: -15 to -30 dB (2.2%)
Radiation Efficiency: 99%
Connector: RP-SMA
Polarization: LHCP
Weight: 5.25g
SWR: ≤ 1.5:1
